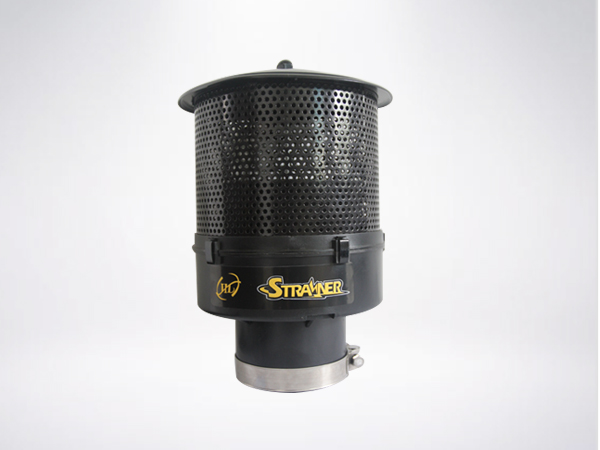

Pass-through Air Pre-filter

Detailed introduction

Operating Principle and Product Parameters

External air, which carries dust and impurities, enters a pre-filter through the bottom of the pre-filter;

The air changes direction to form a rotational eddy after passing through fixed impellers;

The rotational eddy drives a specially-made rotator to enable it to generate high-speed rotation;

The dust and impurities are directly discharged out of the pre-filter through a dust outlet, and clean air enters into an air filter and an engine.

Product models	Rated flow (m3/h)	Coarse filtration efficiency (%)	Sizes (mm) of interfaces
HLKC81	400-750	90.2	Ø82/ Ø98/Ø102/Ø114
HLCH083	450	91.9	Ø71/ Ø76/84
